Processor

Qualcomm® Snapdragon® 6 Gen 3 Mobile Platform4nm manufacturing process technology

CPUOcta-core processor,

up to 2.4GHz

GPUAdreno

Storage & RAM

LPDDR4X + UFS2.2

8GB + 128GB | 8GB + 256GB

Expandable storage up to 1TB*Available storage and RAM are less than the total memory due to storage of

the operating system and software pre-installed on the device.

*Actual support and compatibility of memory cards may vary between

manufacturers.

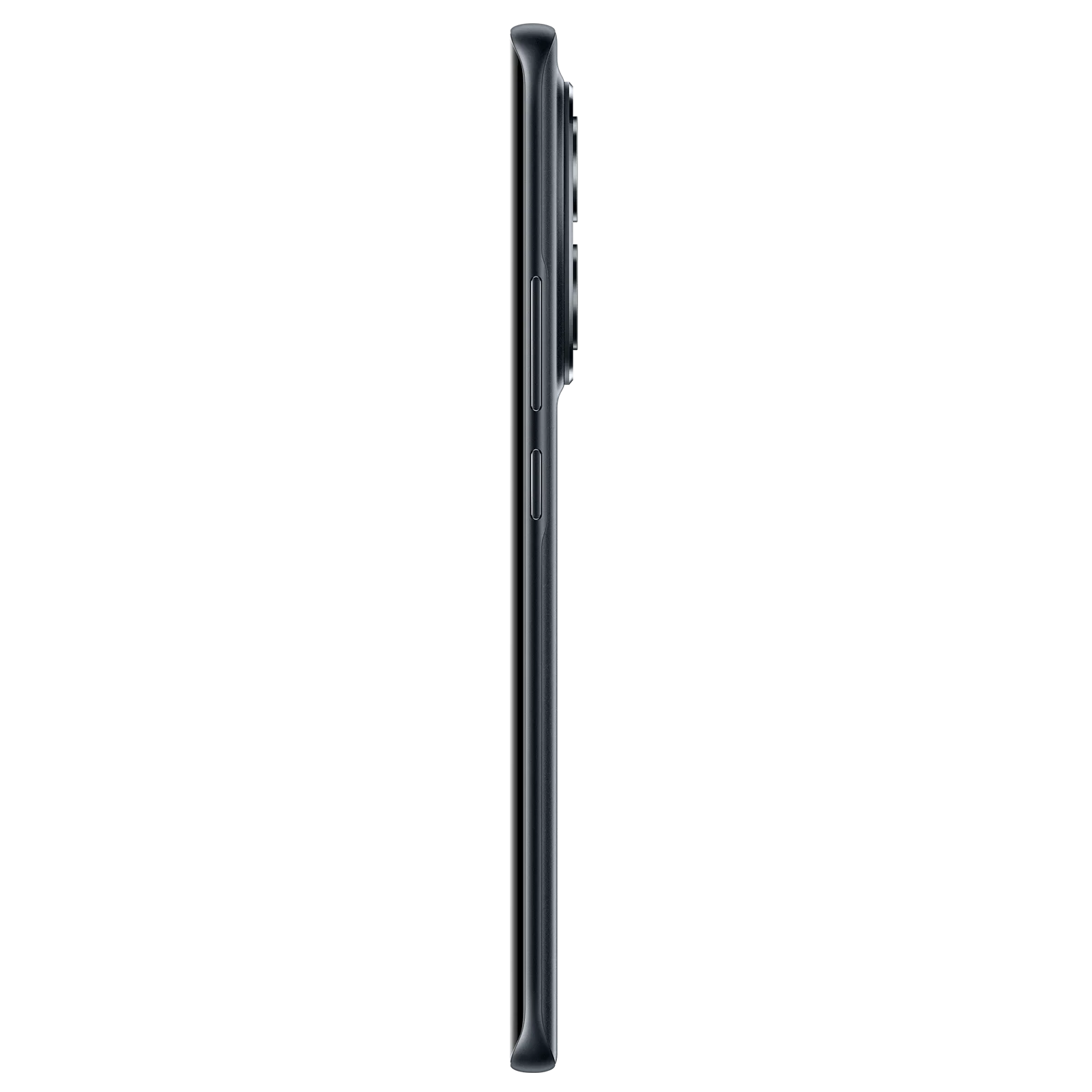

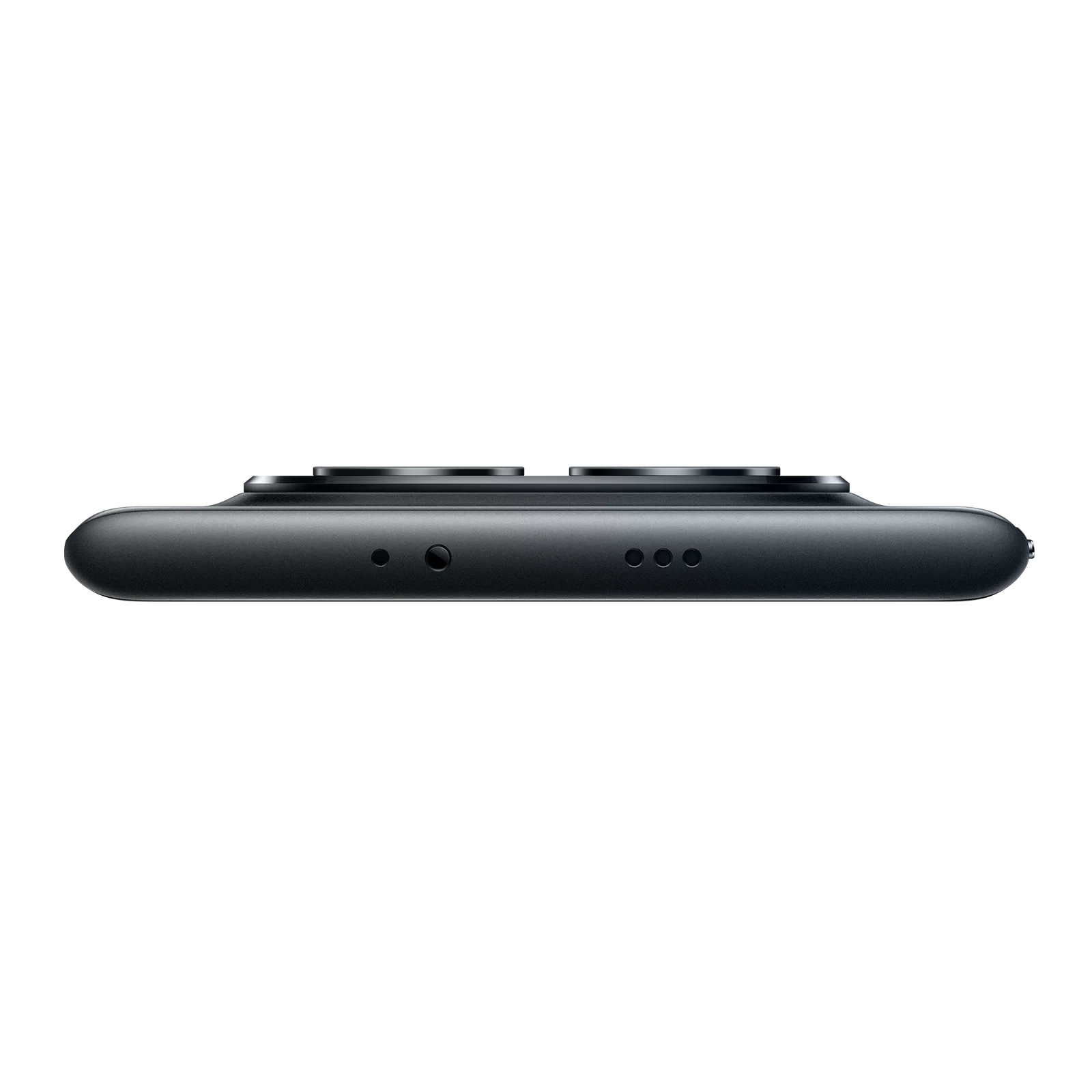

Dimensions

Height: 164mm

Width: 75.42mm

Thickness: 7.35mm (Black, Glacier Blue),

7.40mm (Mist Purple)

Weight: 178g*Data provided by internal laboratories. Industry measurment methods may

vary, and therefore actual results may differ.

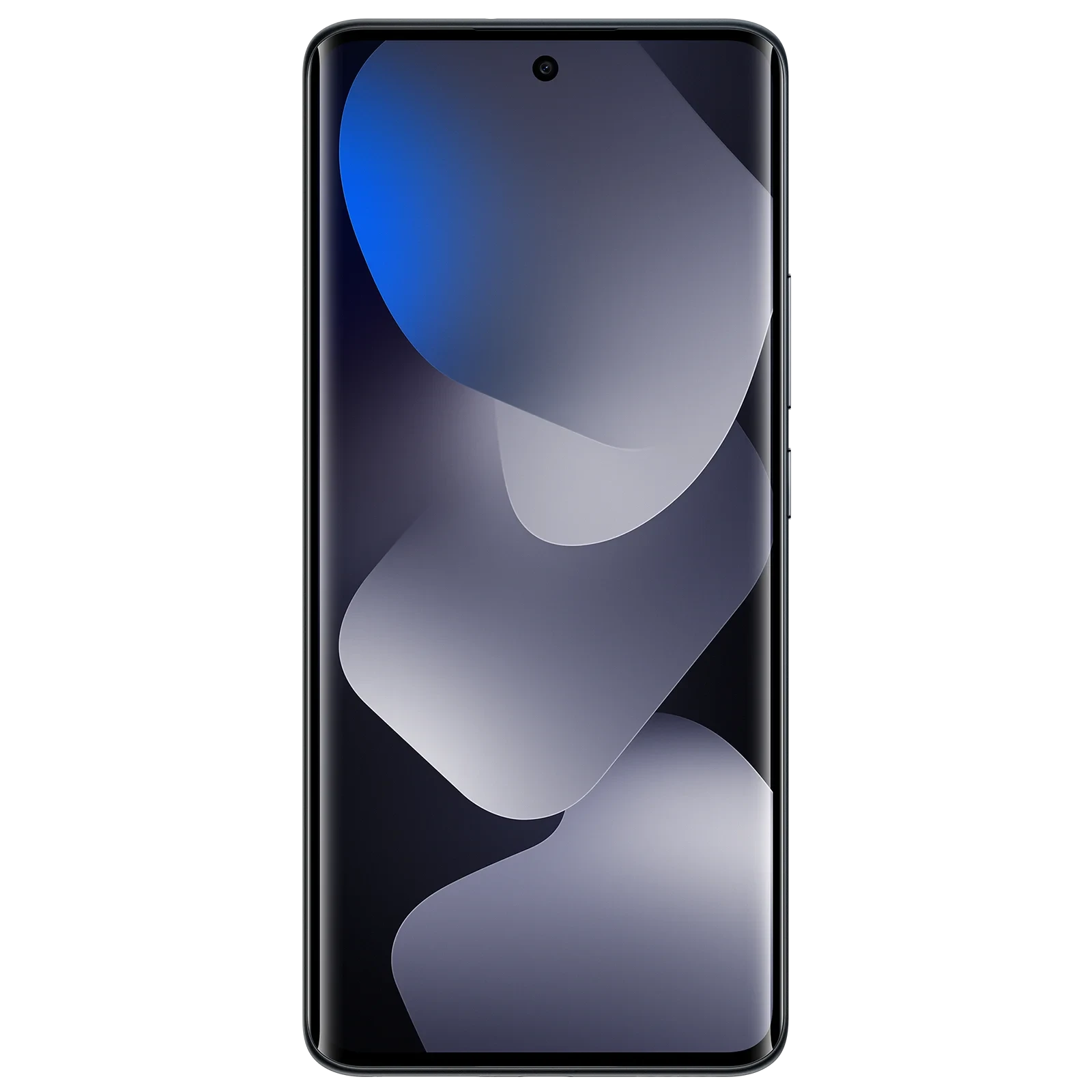

Display

17.2cm(6.77) AMOLED displayResolution: 2392 × 1080

Refresh rate: Up to 120Hz

Touch sampling rate: 240HzReading mode

Brightness: 3200nits peak brightness, 800nits (typ)

Colour depth: 12bit

Contrast ratio: 8,000,000:1

DCI- P3 wide color gamut

Sunlight display

Reading mode

3840Hz PWM dimming | 16,000-level

brightness adjustment

Screen-to-body ratio: 92%*Data obtained from Xiaomi Internal Labs. Actual results may vary.TÜV Rheinland Low Blue Light

(Hardware Solution) Certified

TUV Rheinland Circadian Friendly Certified

TÜV Rheinland Flicker Free Certified

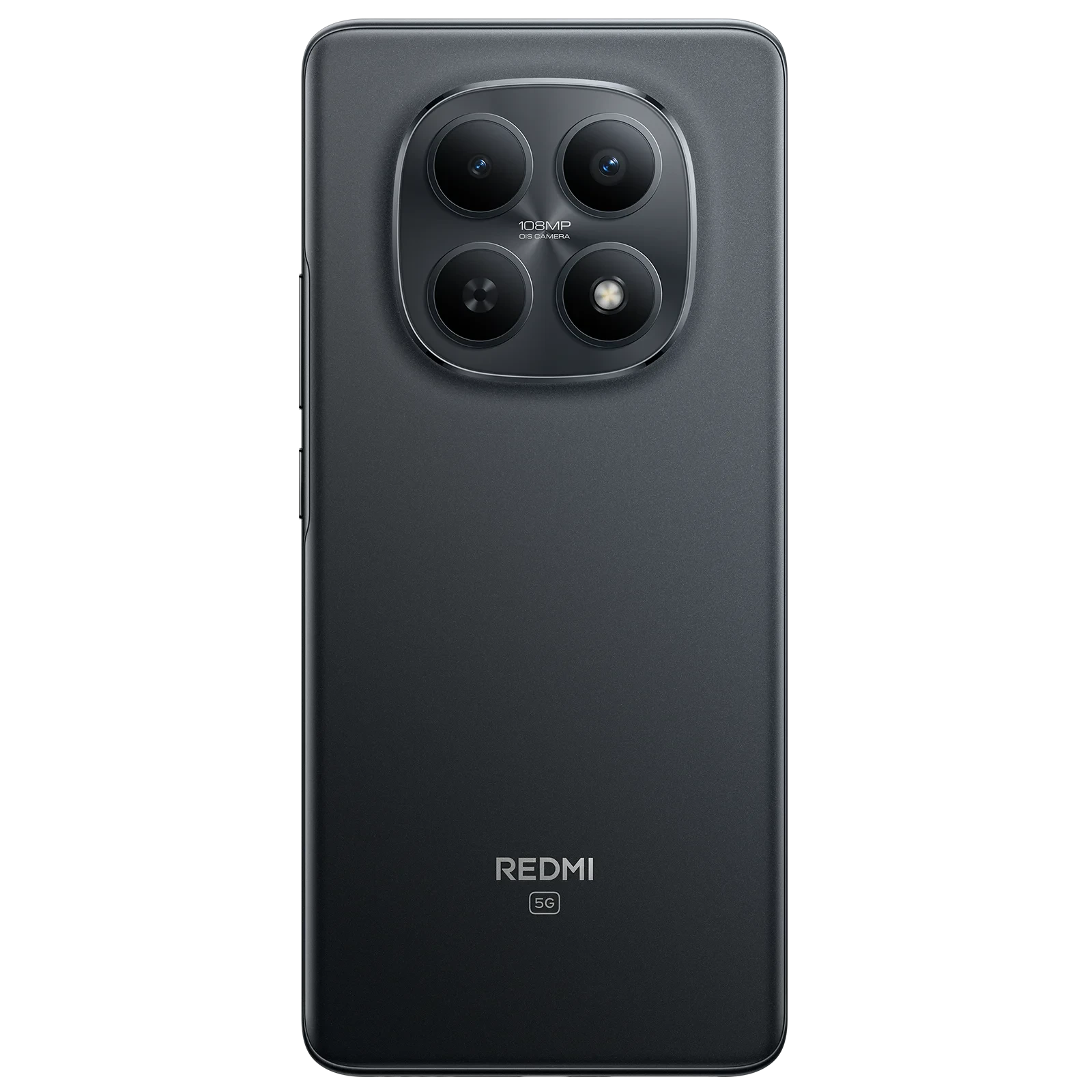

Rear Camera

108MP Main Camera0.64um, 9 in 1 1.92um

f/1.7

8MP Ultra-wide Cameraf/2.2

Rear Video Recording4K at 30fps

1080p at 30fps

720p at 30fps

Front Camera

20MP Front Camera1/4" sensor size

f/2.2

4P lens

Front Video Recording1080p at 30fps

720p at 30fps

Battery &

Charging

5520mAh (Typ) Battery

45W Turbo Charging

Security

In-Screen Fingerprint Sensor

AI Face Unlock

Network &

Connectivity

nano SIM 1 + Hybrid (nano SIM or microSD)

Dual standby

Network bands:5G NSA:n1|n3|n40|n78

5G SA: n1|n3|n5|n8|n28|n40|n78

2G: GSM: B3/B5/B8

3G: WCDMA: B1|B5|B8

4G: FDD-LTE: B1|B3|B5|B8|B28

TDD-LTE:B40|B41(120MHz)

Wireless NetworksBluetooth 5.1

Wi-Fi Protocol: 802.11a/b/g/n/ac

Supports 2.4GHz Wi-Fi | 5GHz Wi-Fi

Supports Wi-Fi Direct

Navigation &

Positioning

GPS: L1 | GLONASS: G1 | BDS: B1I + B1C | Galileo: E1

Audio

Dual speakers

300% volume boost*Data tested by Xiaomi Internal Labs, 300% volume boost

refers to 17 levels of volume compared to 15 levels, and actual

effects may vary due to software and scenarios, please refer

to the actual use.

Dolby Atmos® | Hi-Res

Splash, Water

and Dust

Resistant

IP65 + IP66

*The device is certified to be splash and dust resistant exclusively under

specific laboratory conditions not corresponding to normal use conditions.

The warranty does not cover liquid damage caused by conditions other than

test conditions. Ingress protection might deteriorate due to wear and tear,

physical damage and/or disassembly needed for repair: For more information,

please see Xiaomi official website.

Sensor

Virtual proximity sensor | Ambient light sensor |

Accelerometer | Electronic compass | IR blaster

| Gyroscope

Operating

System

Xiaomi HyperOS 2*Availability of Xiaomi HyperOS 2 features, apps and services may vary

depending on software version and phone model.

Package

Contents

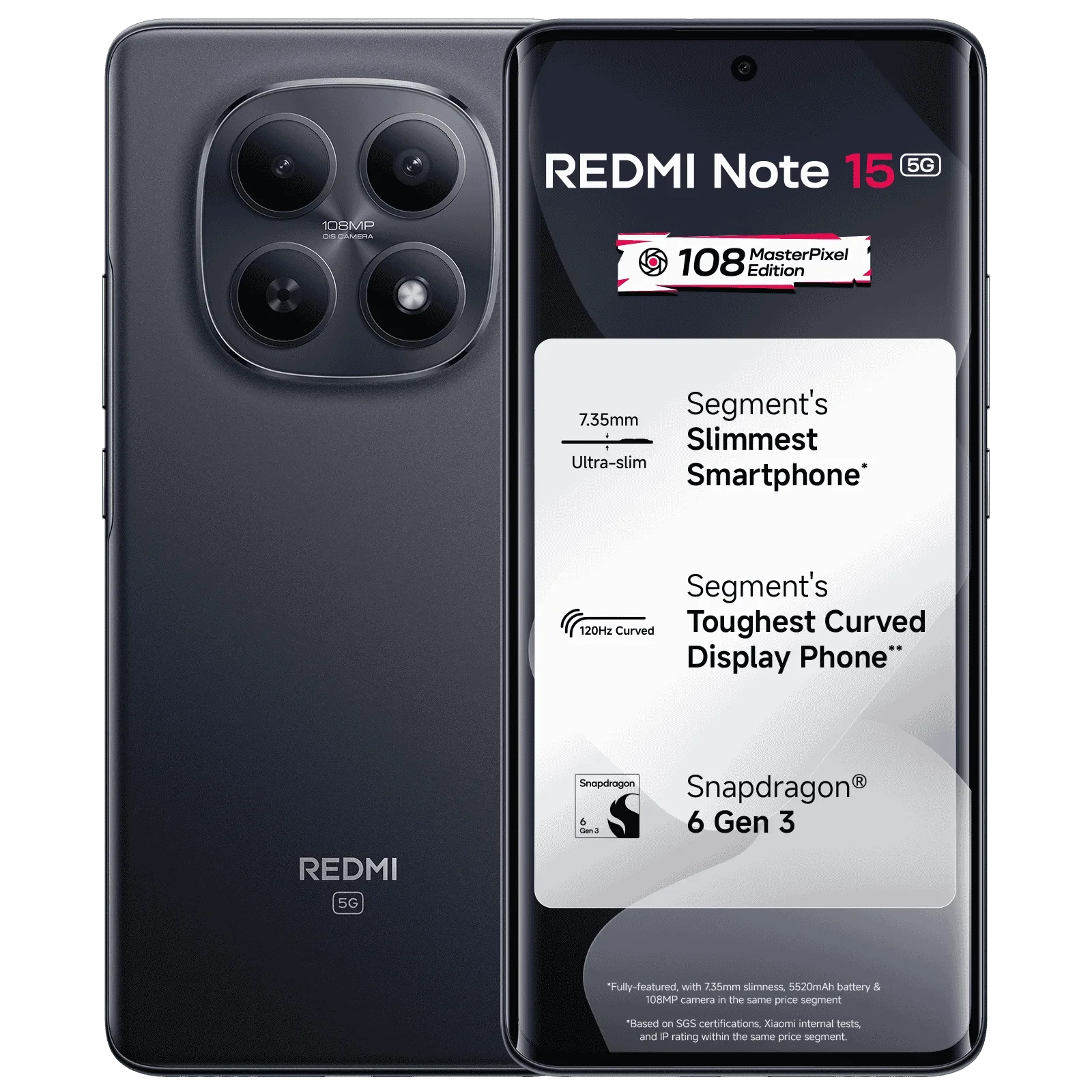

REDMI Note 15 5G / 45W Adapter / USB Type-C Cable / SIM Eject ToolProtective Case / Quick Start Guide / Warranty Card
