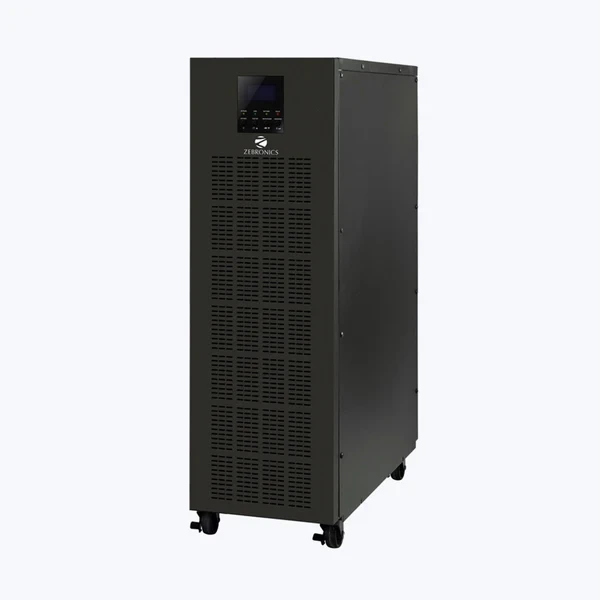

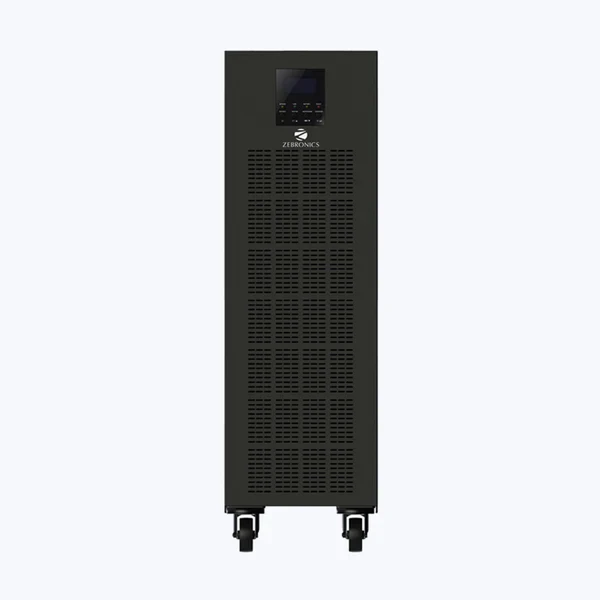

ZEBRONICS Online UPS embedded with isolation transformer, will eliminate common mode noise and the need to install expensive dedicated circuits, it provides reliable galvanically isolated power to critical equipment. Fully coated PCBAs to withstand harsh environments.
Product Type: Online UPS
| Galvanic isolation design to withstand all kinds of load | |
| Fully coating PCBAs to withstand harsh environment | |
| Unique ventilation design for effective heat dissipation | |
| Wide input voltage and frequency range to withstand robust environment | |
| High short-circuit and overload capabilities | |
| Built-in Maintenance bypass switch | |
| Country of Origin : China |
| MODEL | ZEB-OU10KETX16 | |||
| PHASE | Single phase with ground | |||
| CAPACITY | 10KVA / 8KW | |||
| INPUT | ||||
| Nominal Voltage | 208VAC/220VAC/230VAC | |||
| Voltage Range | 165VAC ~ 285VAC @ 16 pcs of batteries ; 185VAC ~ 285VAC @ 18 pcs of batteries | |||
| Frequency | 40 Hz ~ 55 Hz @ 50Hz system ; 56 Hz ~ 64 Hz @ 60Hz system | |||
| OUTPUT | ||||
| Output Voltage | 208VAC/220VAC/230VAC | |||
| Voltage Regulation | ± 1% | |||
| Frequency Range (Synchronized Range) | 45Hz ~ 55 Hz or 56 Hz ~ 64 Hz | |||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz | |||
| Current Crest Ratio | 3:1 | |||
| Harmonic Distortion | ≦ 3 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load) | |||
| Transfer Time | \ | AC to DC : Zero | \ Inverter to Bypass : Zero | |
| Waveform (Batt. Mode) | Pure Sinewave | |||
| EFFICIENCY | ||||
| AC Mode | 88.30% | |||
| Battery Mode | 92% | |||
| BATTERY | ||||
| Long-run Model | ||||
| Battery Type | Depending on the applications | |||
| Battery Numbers** | 16 pcs, 18 pcs | |||
| Charging Current (max.) | Default 8A, 2A/4A/8A (adjustable) | |||
| Charging Voltage | 218.4 V ± 1%, 245.7 V ± 1% | |||
| INDICATORS | ||||
| LCD | Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators | |||
| ALARM | ||||
| Battery Mode | Sounding every 4 seconds | |||
| Low Battery | Sounding every second | |||
| Overload | Sounding twice every second | |||
| Fault | Continously sounding | |||
| PHYSICAL | ||||
| Long-run Model | ||||
| Dimensions, D x W x H (mm) | 562 x 250 x 830 | |||
| Net Weight (Kgs) | 86 | |||
| ENVIRONMENT | ||||
| Operating Temperature | 447 | |||
| Operating Humidity | < 95 % and non-condensing | |||
| Noise Level | Less than 60dBA @ 1 Meter | |||
| MANAGEMENT | ||||
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC | |||
| Dry Contact | Five signals: AC failure, low battery, UPS alarm, bypass and UPS fault | |||
| Optional SNMP | Power management from SNMP manager and web browser |
