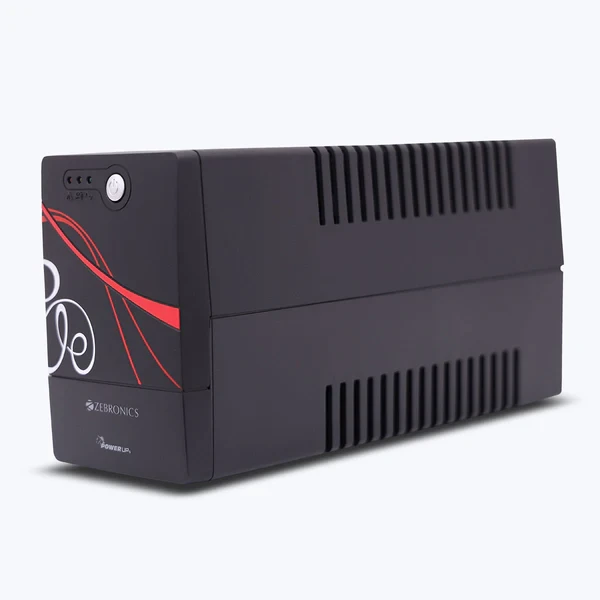

SKU: UPS-ZEB-U745 POWER UPS
Product Type: Line Interactive UPS
| Line interactive UPS | |
| Auto restart while AC is recovering | |
| Double Boost | |

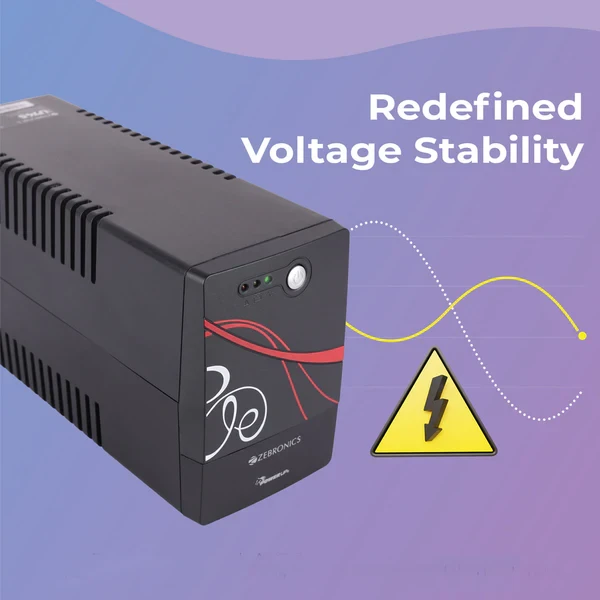

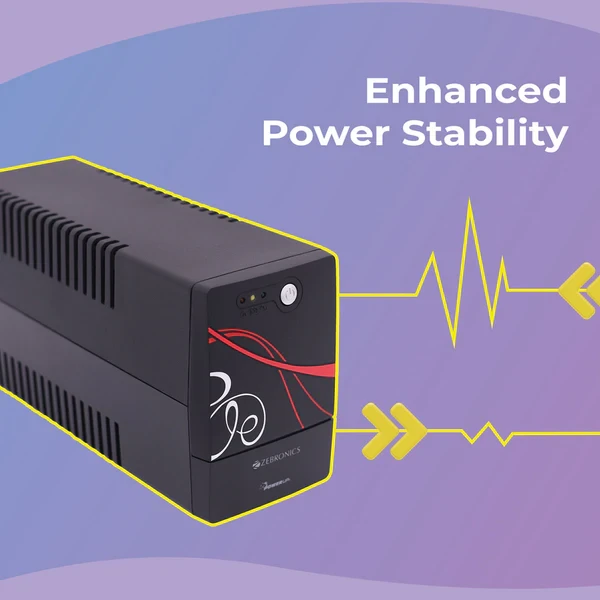

| Automatic Voltage Regulation (AVR) | |
| Wide Input Range | |
| Microcontroller Based | |

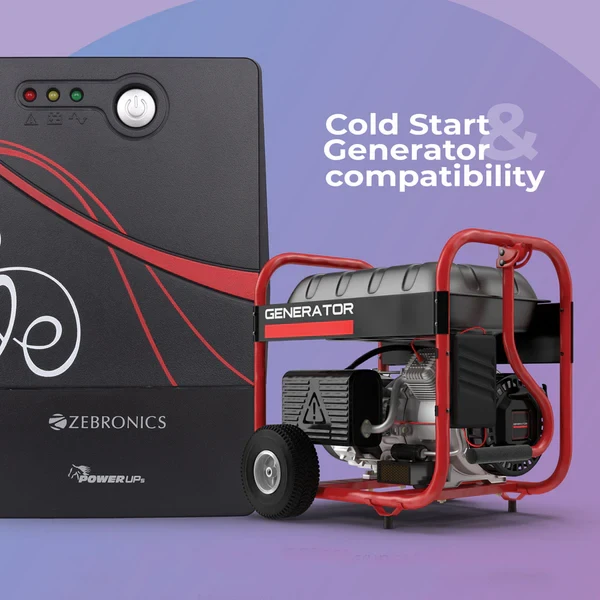

| Generator Compatible | |
| No load Auto Shutdown at battery mode |
| Capacity | ||||

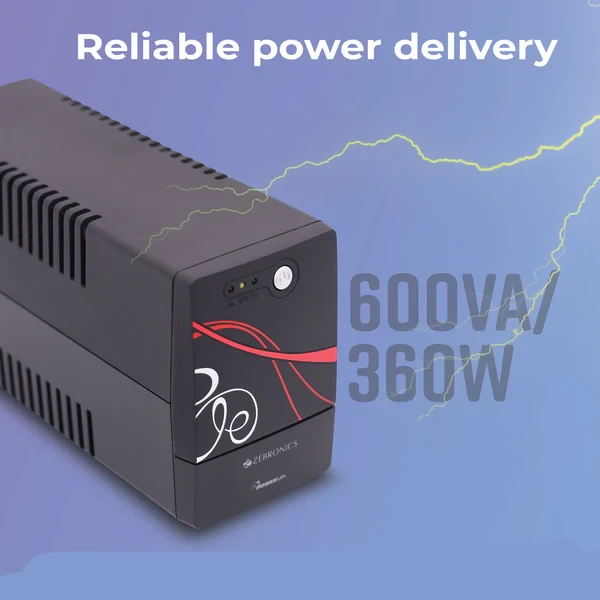

| (VA/W) | 600VA/360W | |||
| Input | ||||
| Nominal voltage | 220-240 VAC | |||
| Voltage range | 140-300 VAC | |||
| Frequency | 50/60 Hz | |||
| Plug type | 3 Pin plug | |||
| Input Protection | Internal Fuse | |||
| Output | ||||
| Voltage range (AC mode) | 230VAC ± 10 % | |||
| Voltage range (Batt. mode) | 230VAC ± 10 % | |||
| Frequency range (Batt. mode) | 50/60Hz ±1% | |||
| Transfer time | 4-8ms | |||

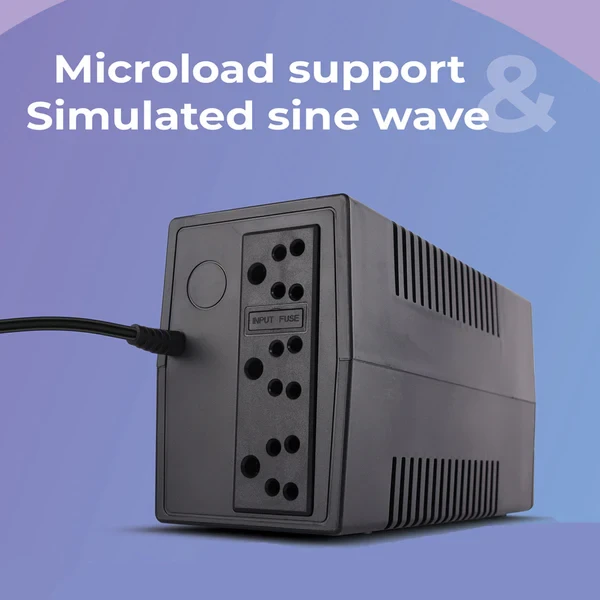

| Waveform | Simulated Sine Wave | |||
| No. of output sockets | 3 | |||

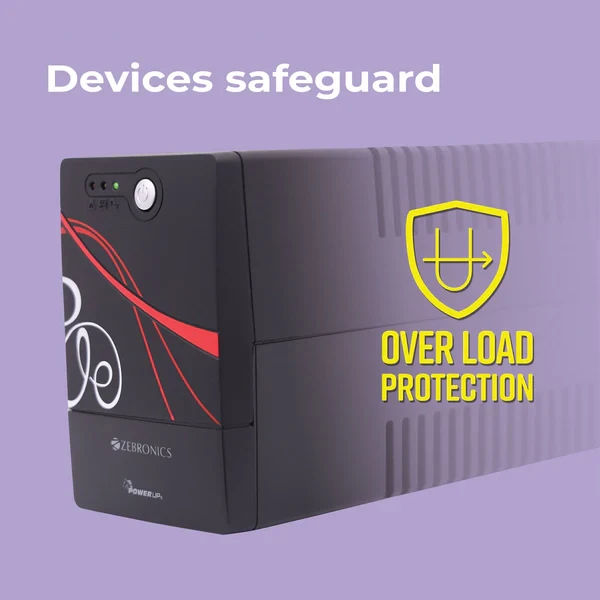

| Protections | Overload, Short Circuit, Over Discharge & Over Charge | |||
| Battery | ||||

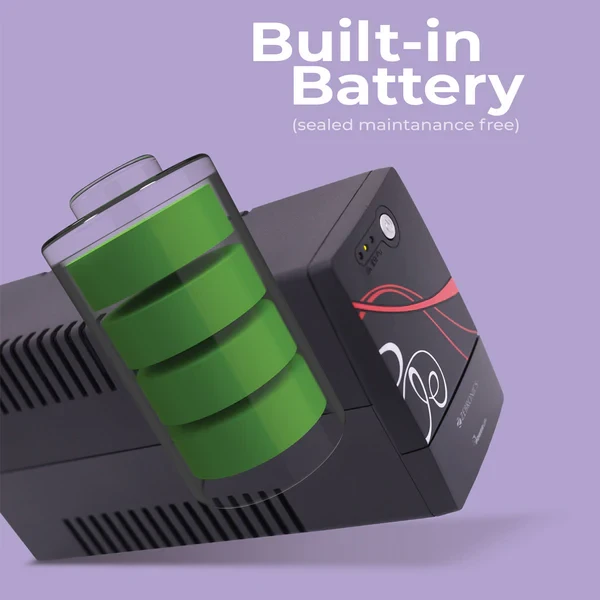

| Battery type | 12V 7Ah x 1 nos | |||
| Charging current | 1A | |||
| Recharge time | 6-8h to charge 90% (after complete discharge) | |||
| Indicators | ||||

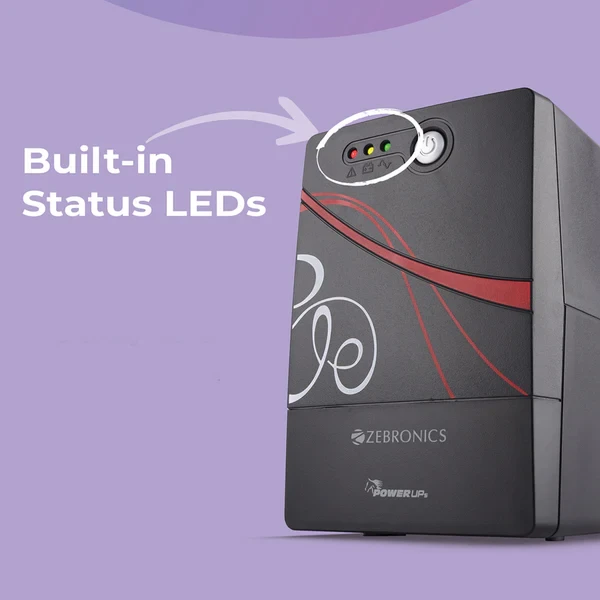

| No. of LEDs | 3 LED | |||
| AC mode | Green LED Glows | |||
| Battery mode | Orange LED blinks | |||
| Fault mode | Red LED Glow | |||
| Alarm | ||||
| Battery mode | Beeping every 10 Seconds | |||
| Low battery | Beeping every 1 Second | |||
| Overload | Beeping every 0.5 second | |||
| Fault | Continuous beeping | |||
| Physical details | ||||
| Dimension (W x D x H) | 9.6 x 27.5 x 14.2 mm | |||
| Net. weight | 3.9 kg | |||
| Package dimension (WxDxH | 32.6 x 14.2 x 21.3 mm | |||
| Environmental factors | ||||
| Operational temperature | 0-40⁰C | |||
| Noise level | < 45dB | |||
| Country of Origin | People's Republic of China | |||
| Package Contents | ||||
| UPS | 1U | |||
| QR Code Guide | 1U | |||
